• Closed-Loop
• 3-ph AC 340V-460V 0.75kW-710kW
• 3-ph AC 660V-690V 18.5kW-800kW
• VVF/SVC/FVC Control
• LCD Digital Displays
• Support STO Function
• Modbus RTU/Profinet/EtherCAT/CANopen Communication
• Spport PM/AM

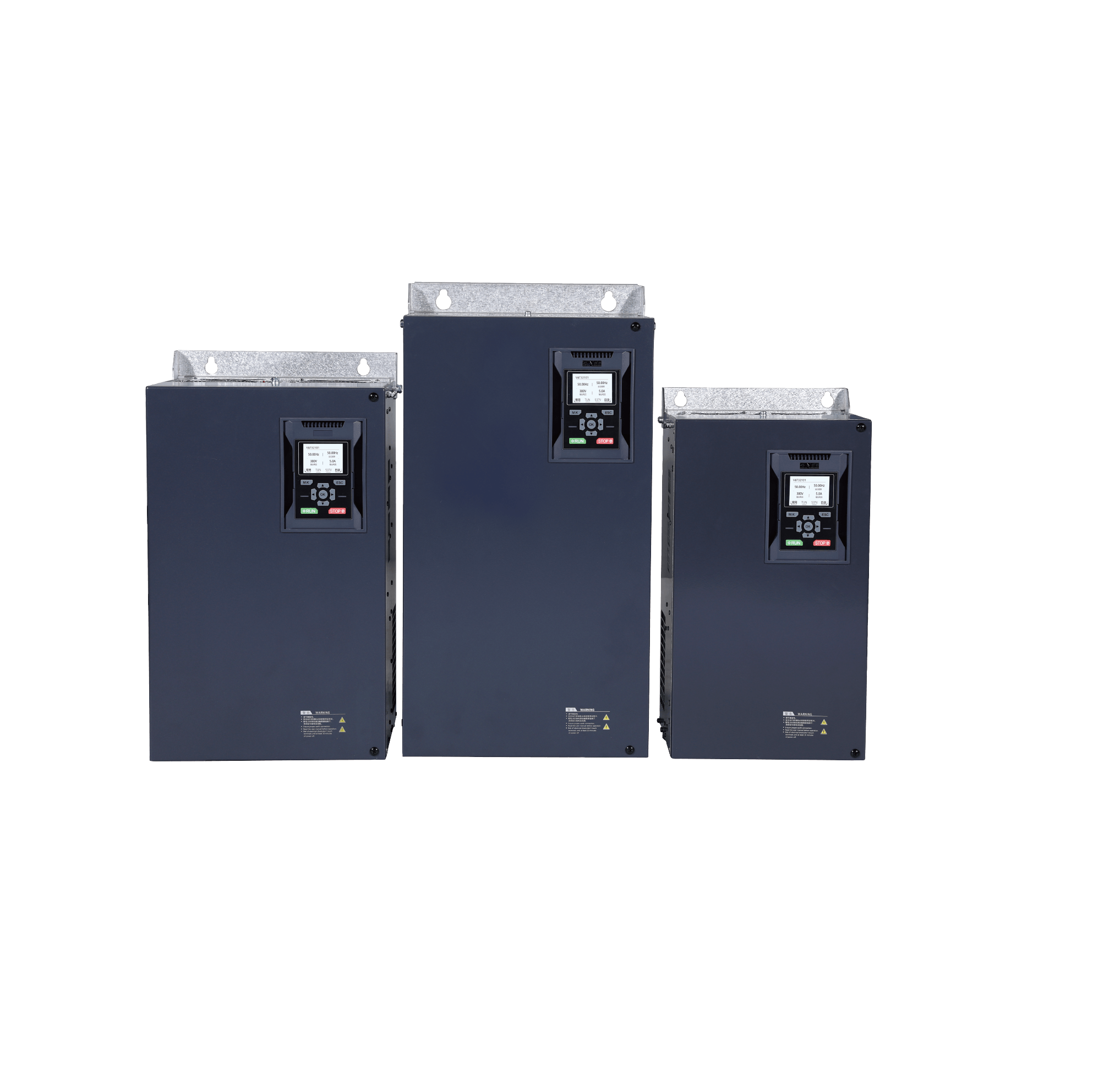

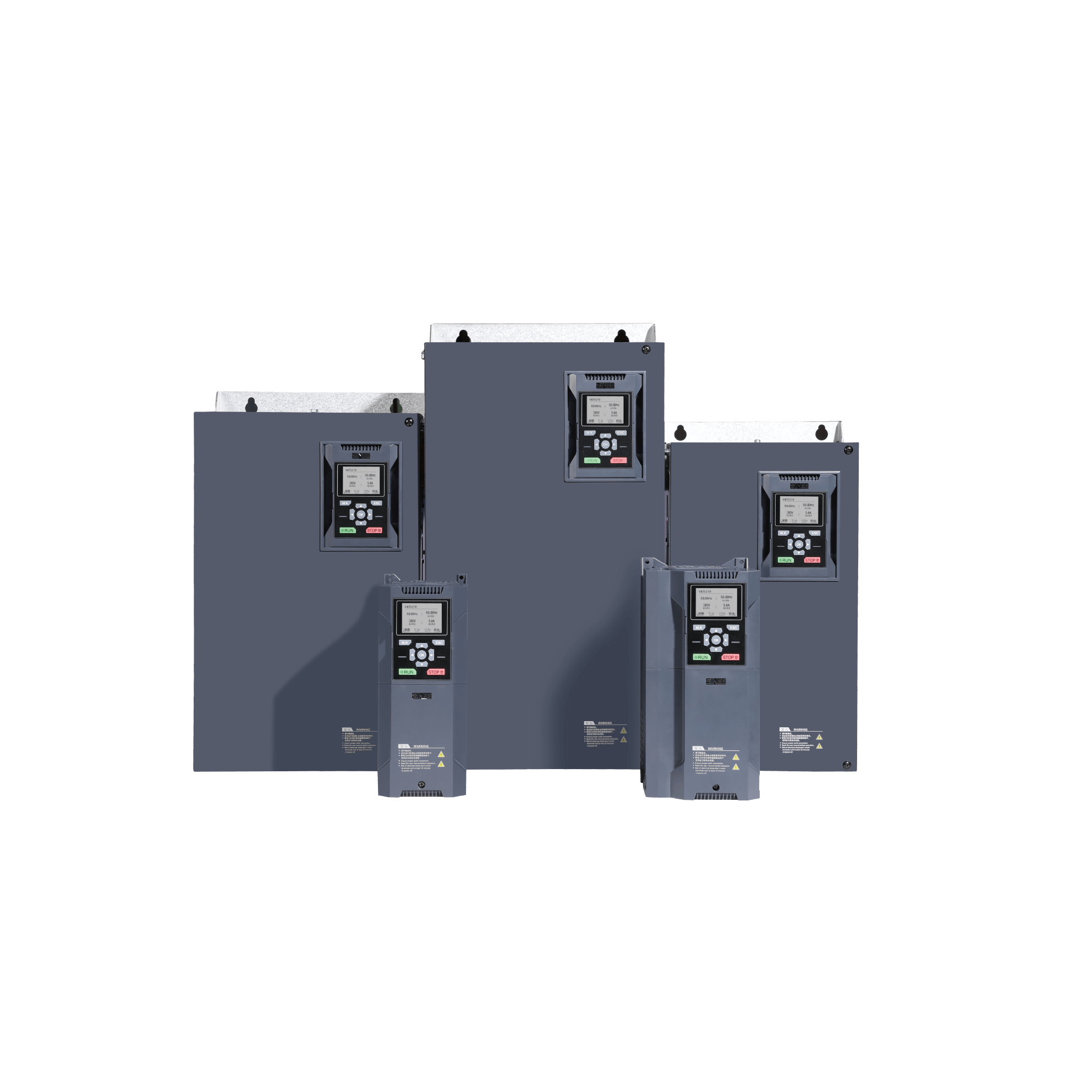

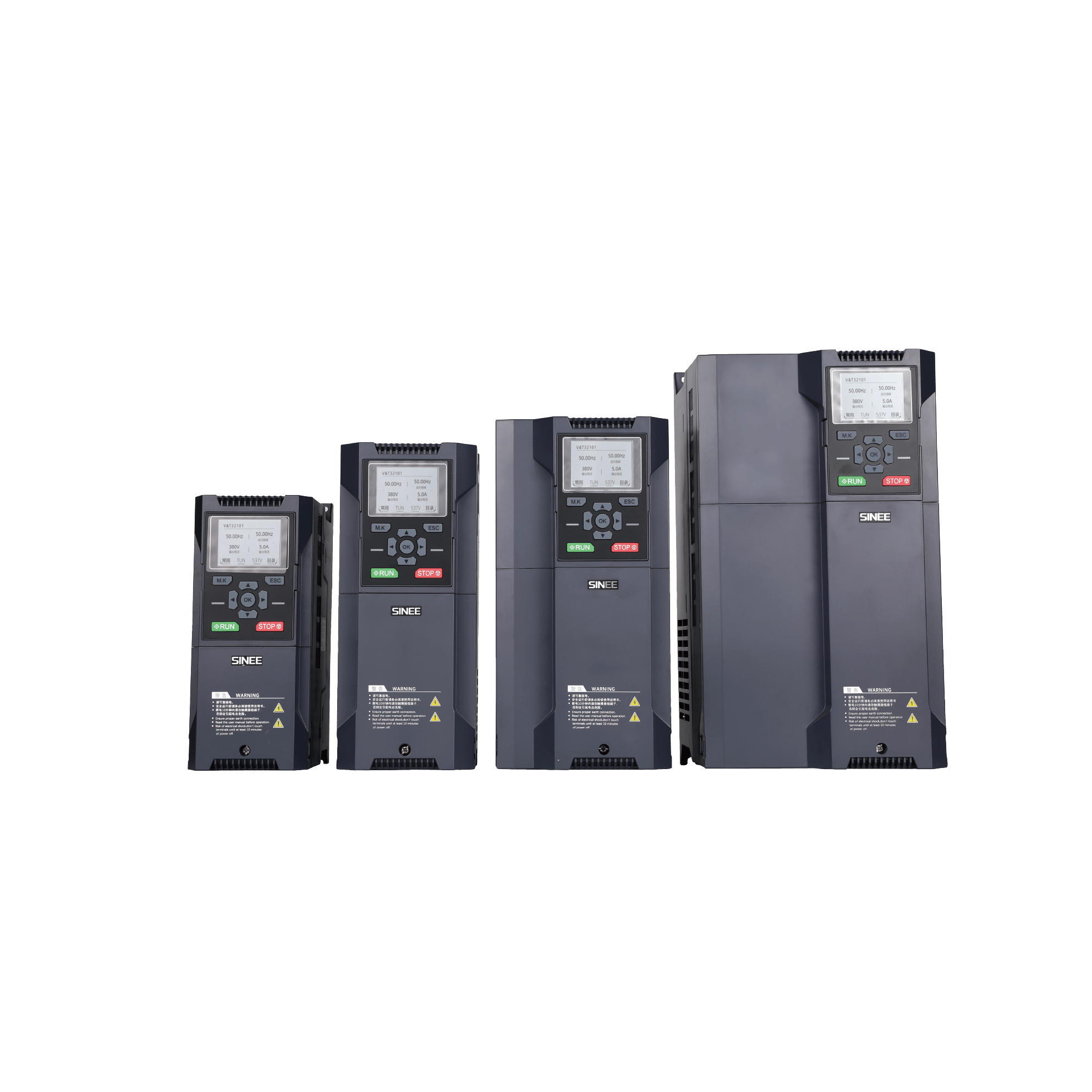

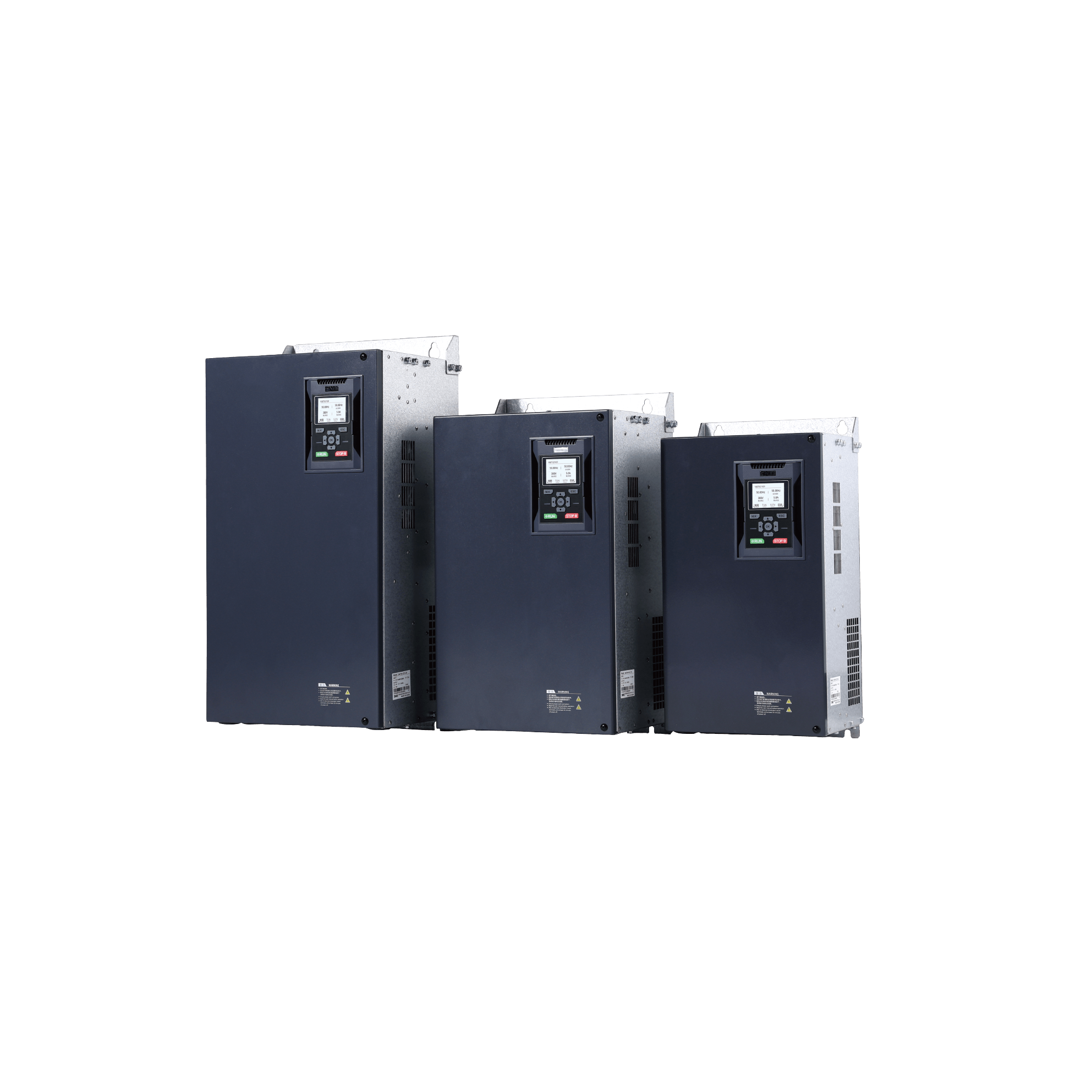

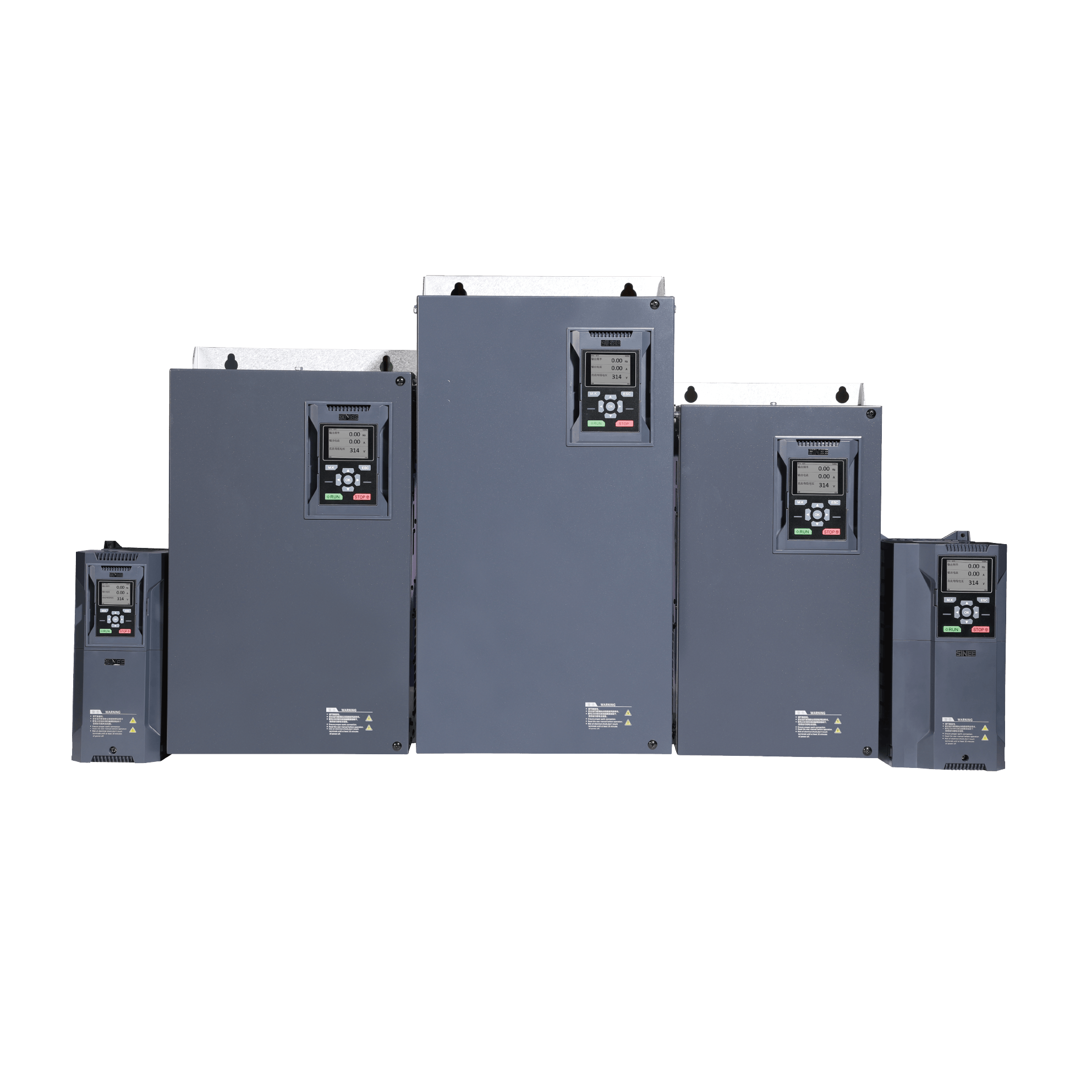

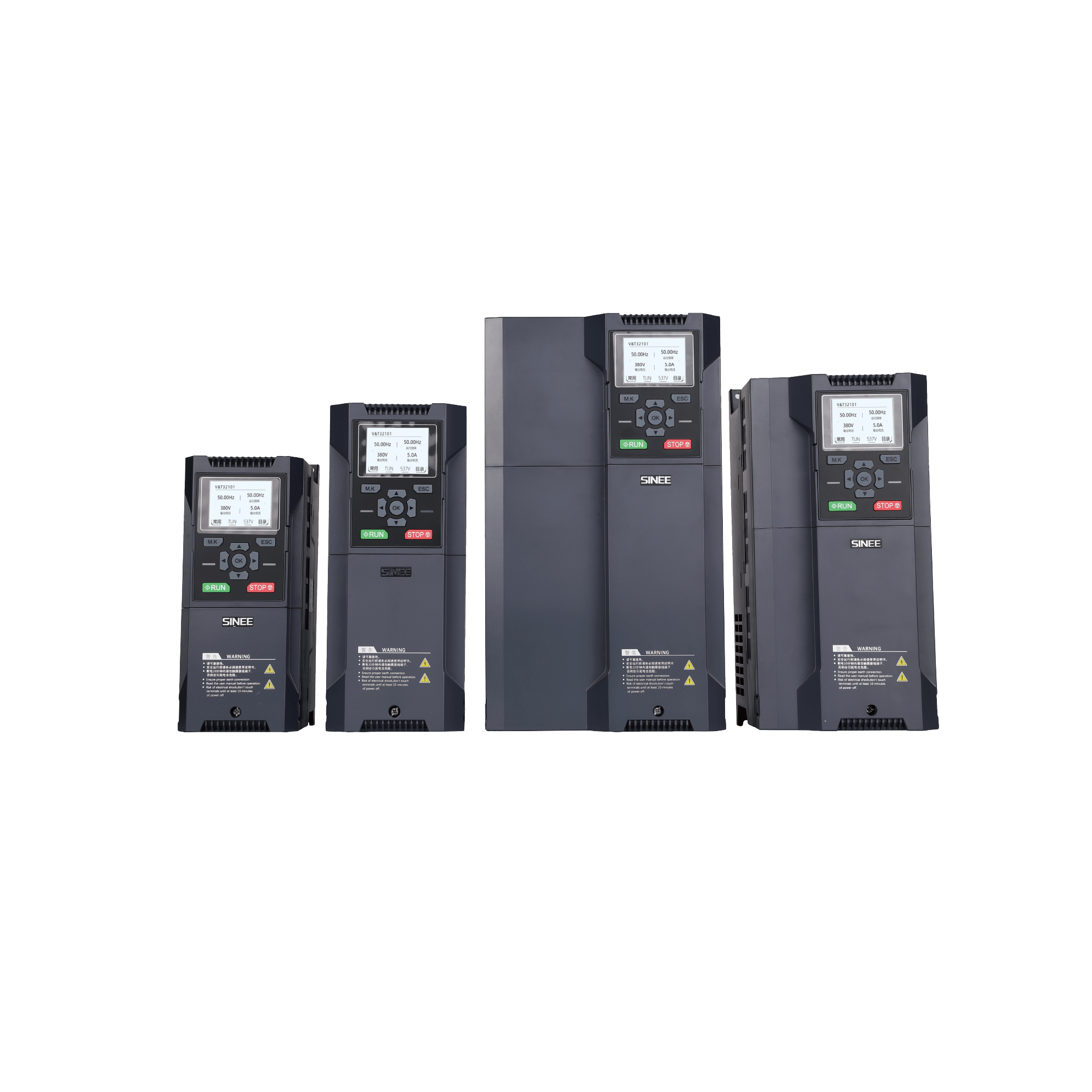

EM760 Series Inverter
Three-phase AC 340V-460V 0.75kW-710kW
660V-690V 18.5kW-800kW
The EM760 series inverter is a high-performance vector control inverter launched by SINEE, which integrates the synchronous motor drive and asynchronous motor drive. It supports three-phase AC asynchronous motors and permanent magnet synchronous motors; drive control technologies, such as the improved vector VF control technology (VVF), speed sensorless vector control technology (SVC) and speed sensor vector control technology (FVC); speed output and torque output; Wi-Fi access and background software debugging; expansions such as I/O expansion cards, communication bus expansion cards and PG cards.
Features of the EM760 series inverter:
1.Standard built-in C3 filter to meet the high requirements of electromagnetic compatibility
2.Built-in DC reactor to reduce input current distortion and increase the power factor
3.Standard LCD panel, easy to operate
4.Integration of the permanent magnet synchronous motor / asynchronous motor / permanent magnet synchronous reluctance motor / high-speed motor drive
5.Mainstream bus expansion cards: PROFINET, CANopen, EtherCAT
6.PG cards: OC, differential, UVW, resolver PG card, sine and cosine PG card
| Item | Specification | |
Power supply | Rated voltage of power supply | Three-phase 340V-10% to 460V+10% 50-60Hz ± 5%; voltage unbalance rate:<3% |
Output | Maximum output voltage | The maximum output voltage is the same as the input power voltage. |
| Rated output current | Continuous output of 100% rated current | |
| Maximum overload current | G model: 150% rated current for 60s P model: 120% rated current for 60s (2kHz carrier; please derate for carriers above this level) | |
Basic control | Driving mode | V/F control (VVF); Speed sensorless vector control (SVC) Speed sensor vector control (FVC) |
| Input mode | Frequency (speed) input, torque input | |
| Start and stop control mode | Keyboard, control terminal (two-line control and three-line control),communication | |
| Frequency control range | 0.00~600.00Hz/0.0~3000.0Hz | |
| Input frequency resolution | Digital input: 0.01Hz Analog input: 0.1% of maximum frequency | |
| Speed control range | 1:50 (VVF), 1:200 (SVC), 1:1000 (FVC) | |
| Speed control accuracy | ±0.5% (VVF), ±0.2% (SVC), ±0.02% (FVC) | |
| Acceleration and deceleration time | 0.01s~600.00s/0.1s~6000.0s/1s~60000s | |
| Voltage/frequency characteristics | Rated output voltage 20%~100% adjustable, reference frequency 1Hz~600Hz/3000Hz adjustable | |
| Torque boost | Fixed torque boost curve, any V/F curve optional | |
| Starting torque | 150%/3Hz (VVF), 150%/0.25Hz (SVC), 180%/0Hz (FVC) | |
| Torque control accuracy | ±5% rated torque (SVC), ±3% rated torque (FVC) | |
| Self-adjustment of output voltage | When the input voltage changes, the output voltage will basically remain unchanged. | |
| Automatic current limit | Output current is automatically limited to avoid frequent overcurrent trips. | |
| DC braking | Braking frequency: 0.01 to maximum frequency Braking time: 0~30S Braking current: 0%~150% rated current | |
| Signal input source | Communication, multi-speed, analog, high-speed pulse, etc. | |
| Input and output | Reference power supply | 10.5V±0.5V/20mA |
| Terminal control power | 24V/200mA | |
| Digital input terminal | 7 (standard configuration X1~X7) + 3 (extension card X8~X10)-channel digital multi-function inputs: X7 can be used as a high-speed pulse input terminal (F02.06 = 35/38/40); X1~X6 and X8~X10, totally 9 terminals that can only serve as ordinary digital input terminals | |
| Analog input terminal | 3 (standard configuration AI1 ~ AI3) + 1 (extension card AI4)-channel analog input: 1-channel AI1: support 0 ~ 10V or -10~ 10V, optional for selection by using function code F02.62; 2-channel AI2/AI3: support 0 ~ 10V or 0~ 20mA or 4~ 20mA, optional for selection by using function code F02.63 and F02.64 is optional; 1-channel AI4: support 0 ~ 10V or -10~ 10V, optional for selection by using function code F02.65 | |
| Digital output terminal | 2 (standard Y1/Y2) open-collector multi-function outputs + 2 (R1: EA/EB/EC and R2: RA/RB/RC) relay multi-function outputs + 2 (extension card) (R3: RA3/RC3 and R4: RA4/RC4) relay multi-function outputs Maximum output current of the collector: 50 mA; Relay contact capacity 250VAC/3A or 30VDC/1A, with EA-EC and RA-RC normally open, EB-EC and RB-RC normally closed; RA3-RC3, RA4-RC4 normally open | |
| Analog output terminal | 2-channel (M1/M2) multi-function analog output terminals to output 0~10V or 0~20mA or 4~20mA, optional for selection by using function codes F03.34 and F03.35 | |
| Operation panel | LCD display | The LCD digital tube displays relevant information about the inverter. |
| Parameter copying | Parameter settings of the inverter can be uploaded and downloaded for fast parameter copying. | |
| Protection | Protective Function | Short circuit, overcurrent, overvoltage, undervoltage, phase loss, overload, overheat, overspeed, load loss, external fault, etc. |
| Use conditions | Location | Indoor, at an altitude of less than 1 km, free of dust, corrosive gases and direct sunlight |
| Applicable environment | -10℃ to +50℃, derating by 5% per 1℃ increase above 40℃, 20% to 90%RH (non-condensing) | |
| Vibration | Less than 0.5g | |
| Storage environment | -40℃~+70℃ | |
| Installation method | Wall-mounted, floor-standing electrical control cabinet, through-wall | |
| Protection level | Protection level | Standard IP21/IP20 (remove the plastic cover at the top of the plastic case) |
| Cooling method | Cooling method | Forced air cooling |
| Rated voltage of power supply | Model | Applicable motor power (kW) | Rated output current (A) |
| Three-phase AC 340~460V | EM760-0R7G/1R5P-3B | 0.75/1.5 | 2.5/4.2 |
| EM760-1R5G/2R2P-3B | 1.5/2.2 | 4.2/5.6 | |
| EM760-2R2G/3R0P-3B | 2.2/3.0 | 5.6/7.2 | |
| EM760-4R0G/5R5P-3B | 4.0/5.5 | 9.4/12 | |
| EM760-7R5G/9R0P-3B | 7.5/9.0 | 17/20 | |
| EM760-011G/015P-3B | 11.0/15.0 | 25/32 | |
| EM760-015G/018P-3B | 15/18.5 | 32/38 | |
| EM760-018G/022P-3B | 18.5/22 | 38/44 | |
| EM760-022G/030P-3B | 22/30 | 45/59 | |
| EM760-030G/037P-3/3B | 30/37 | 60/73 | |
| EM760-037G/045P-3/3B | 37/45 | 75/87 | |
| EM760-045G/055P-3/3B | 45/55 | 90/106 | |
| EM760-055G/075P-3/3B | 55/75 | 110/145 | |
| EM760-075G/090P-3/3B | 75/90 | 150/169 | |
| EM760-090G/110P-3 | 90/110 | 176/208 | |
| EM760-110G/132P-3 | 110/132 | 210/248 | |
| EM760-132G/160P-3 | 132/160 | 253/298 | |
| EM760-160G/185P-3 | 160/185 | 304/350 | |
| EM760-200G/220P-3 | 200/220 | 380/410 | |
| EM760-220G/250P-3 | 220/250 | 426/456 | |
| EM760-250G/280P-3 | 250/280 | 465/510 | |
| EM760-280G/315P-3 | 280/315 | 520/573 | |
| EM760-315G/355P-3 | 315/355 | 585/640 | |
| EM760-355G/400P-3 | 355/400 | 650/715 | |
| EM760-400G/450P-3 | 400/450 | 725/810 | |
| EM760C-450G/500P-3 | 450/500 | 820/900 | |
| EM760C-500G/560P-3 | 500/560 | 900/1010 | |
| EM760C-560G/630P-3 | 560/630 | 1010/1140 |
| Specifications | W | W1 | H | H1 | H2 | D | D1 | D2 | d | Appearance |
| EM760-0R7G/1R5P-3B | 95 | 82 | 230 | 222 | 218 | 171 | 132 | 96 | 4.5 | （b） |
| EM760-1R5G/2R2P-3B | ||||||||||
| EM760-2R2G/3R0P-3B | ||||||||||
| EM760-4R0G/5R5P-3B | ||||||||||
| EM760-5R5G/7R5P-3B | 110 | 95 | 275 | 267 | 260 | 187 | 146 | 105 | 5.5 | |
| EM760-7R5G/9R0P-3B | ||||||||||
| EM760-011G/015P-3B | 140 | 124 | 297 | 289 | 280 | 207 | 163 | 120 | 5.5 | |
| EM760-015G/018P-3B | ||||||||||
| EM760-018G/022P-3B | 190 | 171 | 350 | 340 | 330 | 220 | 173 | 128 | 7 | |
| EM760-022G/030P-3B | ||||||||||
| EM760-030G/037P-3/3B | 254 | 200 | 484 | 465 | 440 | 221 | 180.5 | 158 | 9.5 | （c） |
| EM760-037G/045P-3/3B | ||||||||||
| EM760-045G/055P-3/3B | 304 | 210 | 540 | 519 | 480 | 263 | 217 | 197 | 9.5 | |
| EM760-055G/075P-3/3B | ||||||||||
| EM760-075G/090P-3/3B | 324 | 230 | 638 | 613 | 570 | 264 | 220 | 181 | 11.5 | |
| EM760-090G/110P-3 | 339 | 270 | 623 | 600 | 578 | 296 | 243 | 243 | 11.5 | |
| EM760-110G/132P-3 | ||||||||||
| EM760-132G/160P-3 | 422 | 320 | 786 | 758 | 709 | 335 | 271 | 256.4 | 11.5 | |
| EM760-160G/185P-3 | ||||||||||
| EM760-200G/220P-3 | 441 | 320 | 1025 | 989 | 942 | 357 | / | 285 | 11.5 | |
| EM760-220G/250P-3 | ||||||||||
| EM760-250G/280P-3 | 560 | 450 | 1204 | 1170.5 | 1100 | 400 | / | 333 | 13 | |
| EM760-280G/315P-3 | ||||||||||
| EM760-315G/355P-3 | 660 | 443 | 1597 | 1567 | 1504 | 430 | 375.5 | 323.5 | 13 | |
| EM760-355G/400P-3 | ||||||||||
| EM760-400G/450P-3 | ||||||||||
| EM760C-450G/500P-3 | 805 | 756 | 2145 | 1945 | 1804 | 700 | 440 | 165 | 13 | （d) |
| EM760C-500G/560P-3 | ||||||||||
| EM760C-560G/630P-3 |
