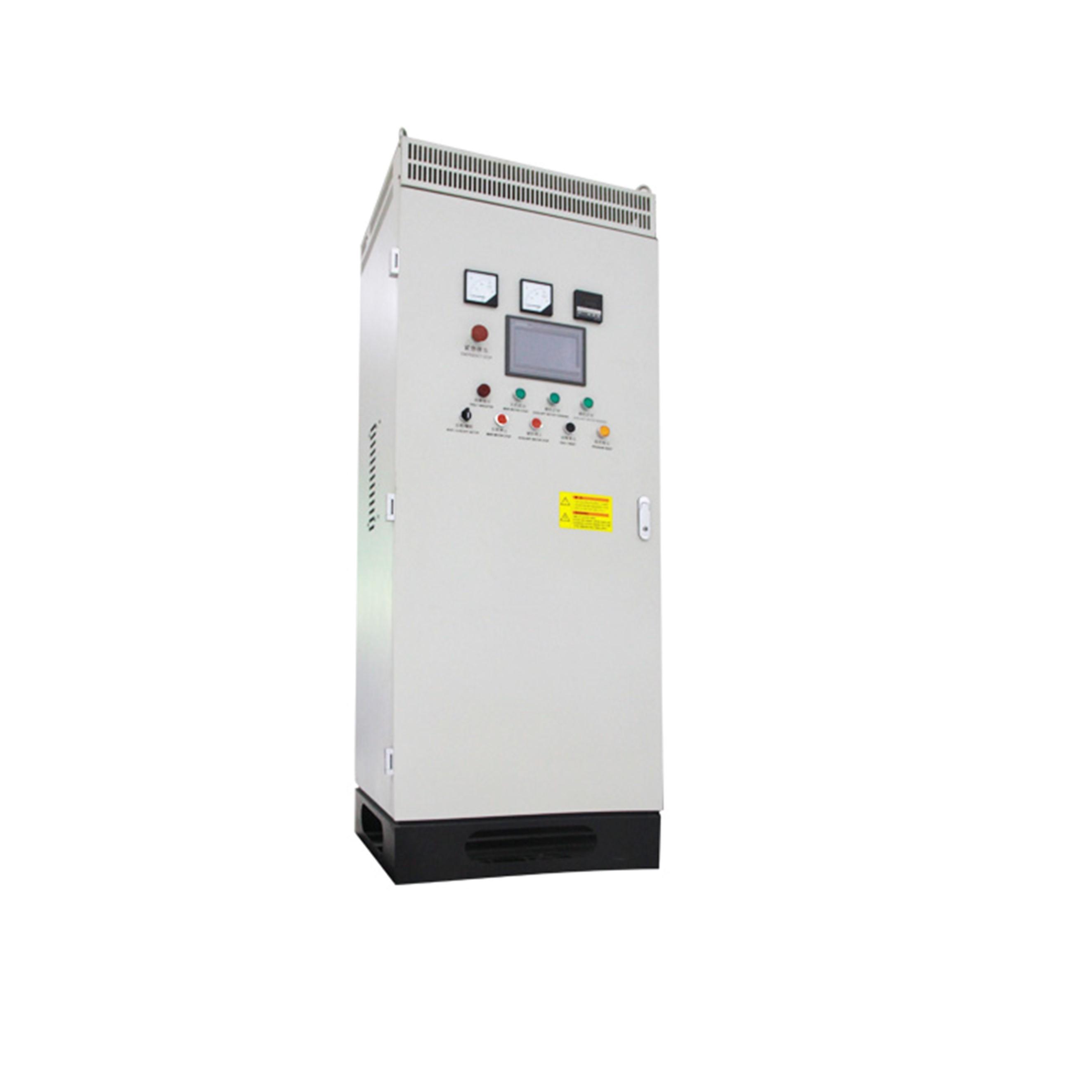

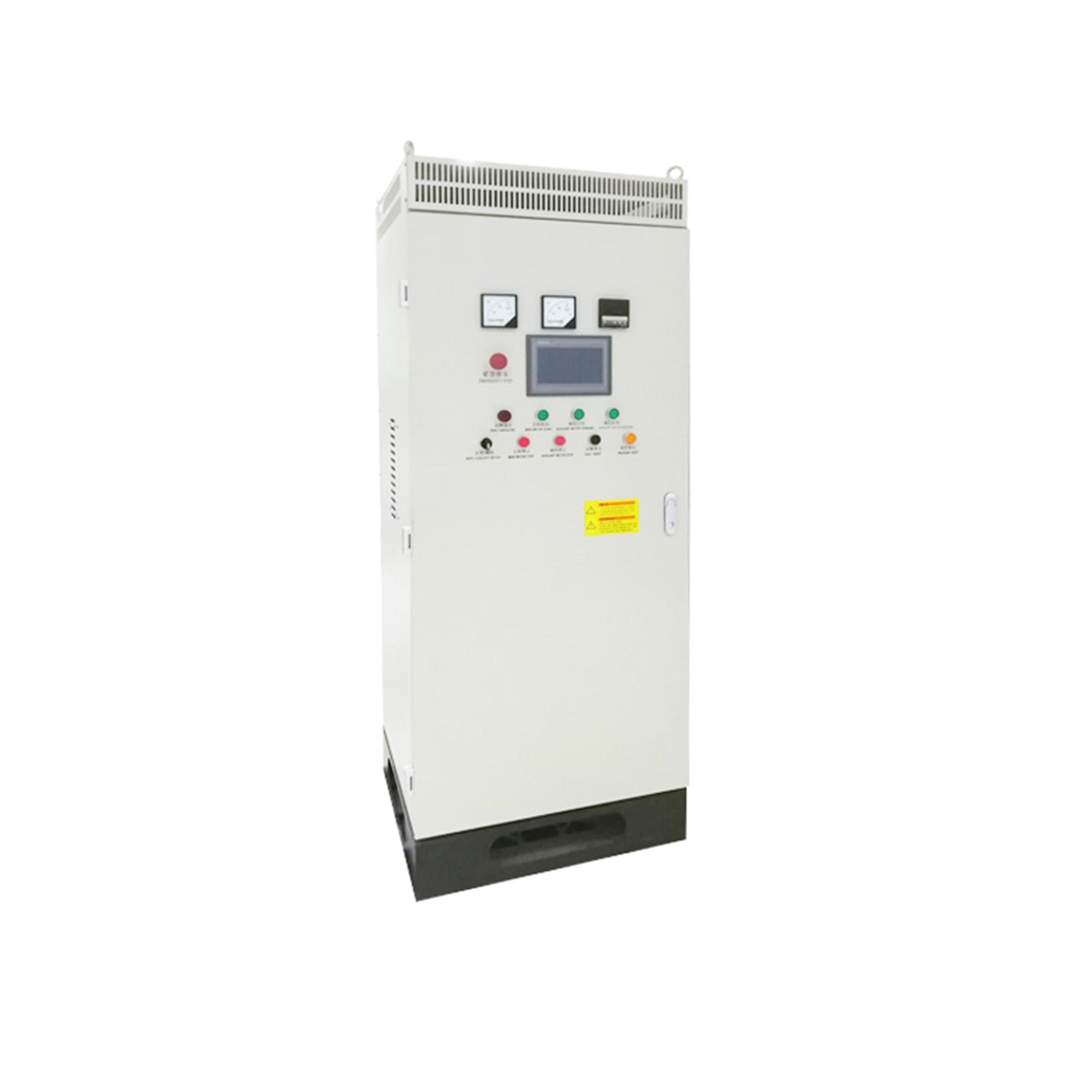

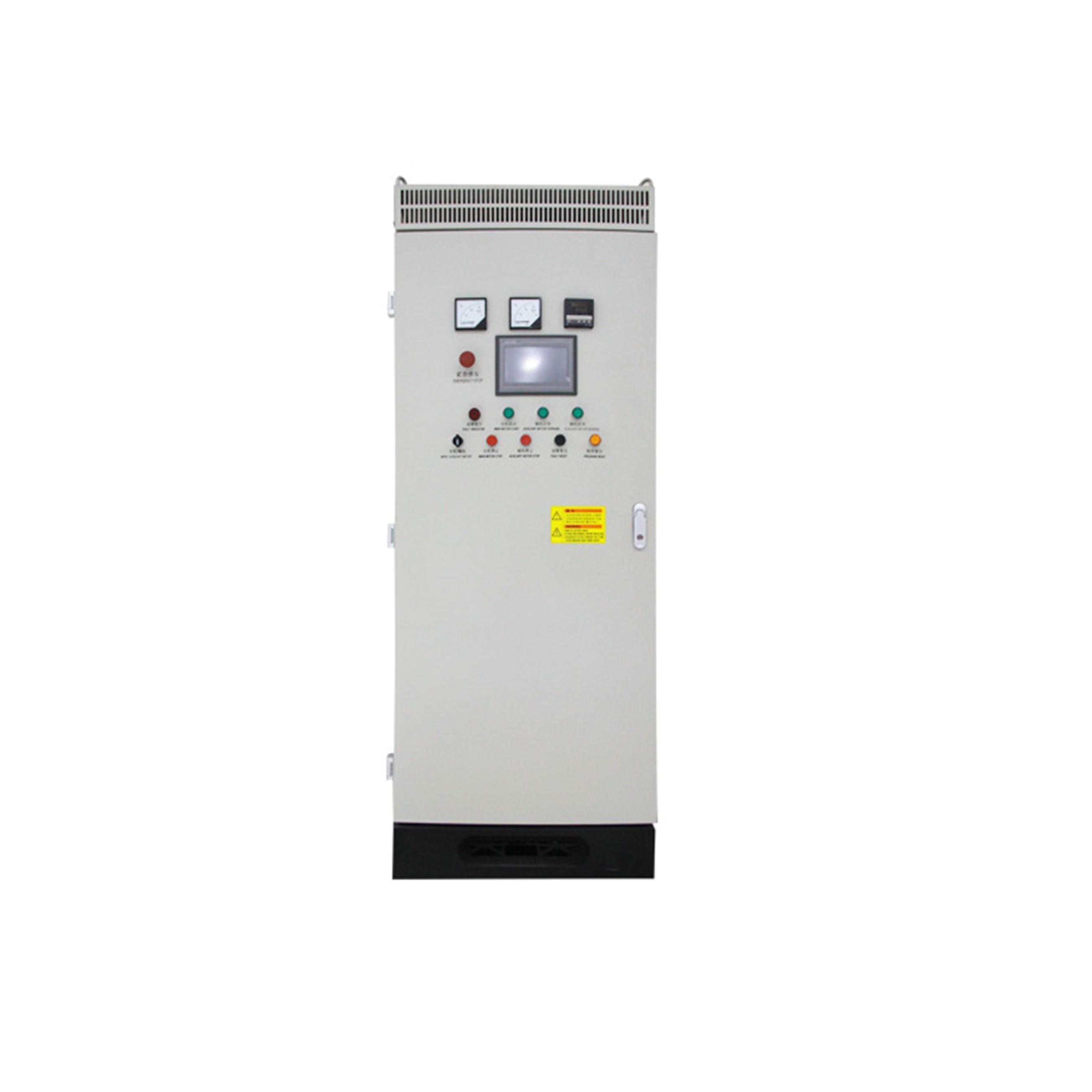

EM318C series special frequency conversion control cabinet for ball mill
high-performance control cabinet specially developed by Sine Electric for ball mill applications.
EM318C series special frequency conversion control cabinet for ball mill has the following characteristics:
•Low-frequency and high-torque stable operation: 0.5Hz/150% rated torque is output smoothly, ensuring smooth start-up of the ball mill;
•Convenient man-machine interface (touch screen), it is convenient to set multi-segment running time and operating frequency of each time period, and it is convenient
to view current and voltage and other operating information through the man-machine interface;
•Excellent current limiting ability: ensure that the control cabinet does not trip when the load fluctuates frequently;
•Wide voltage input range, automatic voltage stabilization: to ensure that when the grid voltage drops, the output can still meet the torque output requirements of
the lifting equipment;
•Wide range of speed regulation: meet the requirements of light-load high-speed and heavy-load low-speed hoisting equipment, and improve the working efficiency
of the equipment;
•Modubus communication interface is used to check the working status of the inverter;
•Instantaneous power failure non-stop function, can automatically feed back electric energy to ensure a certain torque output;
•The frequency converter and the motor can be used with the same power without enlarging the capacity of the frequency converter;
| Standard machine | Auxiliary Solution F4-28=1 | Without Auxiliary Solution F4-28=2 | |||
| F0-04=0 | keyboard control | F0-04=1 | Terminal control | F0-04=1 | Terminal control |
| F0-05=0 | Two-wire control 1 | F0-05=2 | Three-wire control 1 | F0-05=2 | Three-wire control 1 |
| F0-09=15.00 | Acceleration time | F0-09=35.00 | Acceleration time | F0-09=35.00 | Acceleration time |
| F0-10=15.00 | Deceleration time | F0-10=35.00 | Deceleration time | F0-10=35.00 | Deceleration time |
| F0-19=0 | Normal starting | F0-19=1 | Speed Tracking Start | F0-19=1 | Speed Tracking Start |
| F0-20=0 | Normal Stoping | F0-20=1 | free Stoping | F0-20=1 | free Stoping |
| F0-26=0 | General speed setting method | F0-26=1 | Special speed setting method | F0-26=1 | Special speed setting method |
| F0-27=0 | normal menu mode | F0-27=1 | Advanced menu mode | F0-27=1 | Advanced menu mode |
| F2-00=1 | RUN | F2-00=1 | RUN | F2-00=52 | Corsair boot starting |
| F2-01=2 | +/- Switch | F2-01=51 | External fault input | F2-01=51 | External fault input |
| F2-02=3 | Multi-speed terminal 1 | F2-02=49 | Program run reset | F2-02=49 | Program run reset |
| F2-03=4 | Multi-speed terminal 2 | F2-03=18 | three-wire stoping | F2-03=18 | three-wire stoping |
| F2-04=5 | Multi-speed terminal 3 | F2-04=9 | free Stoping | F2-04=5 | Multi-speed terminal 3 |
| F2-12=0 | Inverter working | F2-12=33 | Motor fan delay | F2-12=33 | Motor fan delay |
| F2-13=1 | Frequency output FAR | F2-13=0 | Inverter working | F2-13=0 | Inverter working |
| F9-28=0 | Maximum frequency speed tracking | F9-28=1 | Stoping frequency speed tracking | F9-28=1 | Stoping frequency speed tracking |
| Model | Applicable motor power (kW) | Rated input voltage | Rated output current(A) |
| EM318C-110-3 | 110 | Three-phase AC 380V | 220 |
| EM318C-132-3 | 132 | 265 | |
| EM318C-160-3 | 160 | 310 | |
| EM318C-185-3 | 185 | 360 | |
| EM318C-200-3 | 200 | 380 | |
| EM318C-220-3 | 220 | 420 | |
| EM318C-250-3 | 250 | 470 | |
| EM318C-280-3 | 280 | 530 | |
| EM318C-315-3 | 315 | 600 | |
| EM318C-355-3 | 355 | 660 |
| Model | W | W1 | H | H1 | D | D1 | D2 | d | Gravity Center Height |
| EM318C-110-3 | 500 | 390 | 1550 | 1430 | 520 | 410 | 340 | 13 | 920 |
| EM318C-132-3 | |||||||||
| EM318C-160-3 | 500 | 390 | 1650 | 1530 | 520 | 410 | 340 | 13 | 1000 |
| EM318C-185-3 | |||||||||
| EM318C-200-3 | |||||||||
| EM318C-220-3 | 655 | 550 | 1750 | 1600 | 600 | 490 | 420 | 13 | 1030 |
| EM318C-250-3 | |||||||||
| EM318C-280-3 | |||||||||
| EM318C-315-3 | 800 | 690 | 1780 | 1600 | 600 | 490 | 420 | 13 | 1070 |
| EM318C-355-3 |
