• Three-phase AC 380V~415V 4.0~400KW
• Three-phase 4.0~400KW
• Closed-Loop for tower crane
• Open-Loop for construction crane
• VVF/SVC/FVC Control
• LCD Digital Displays

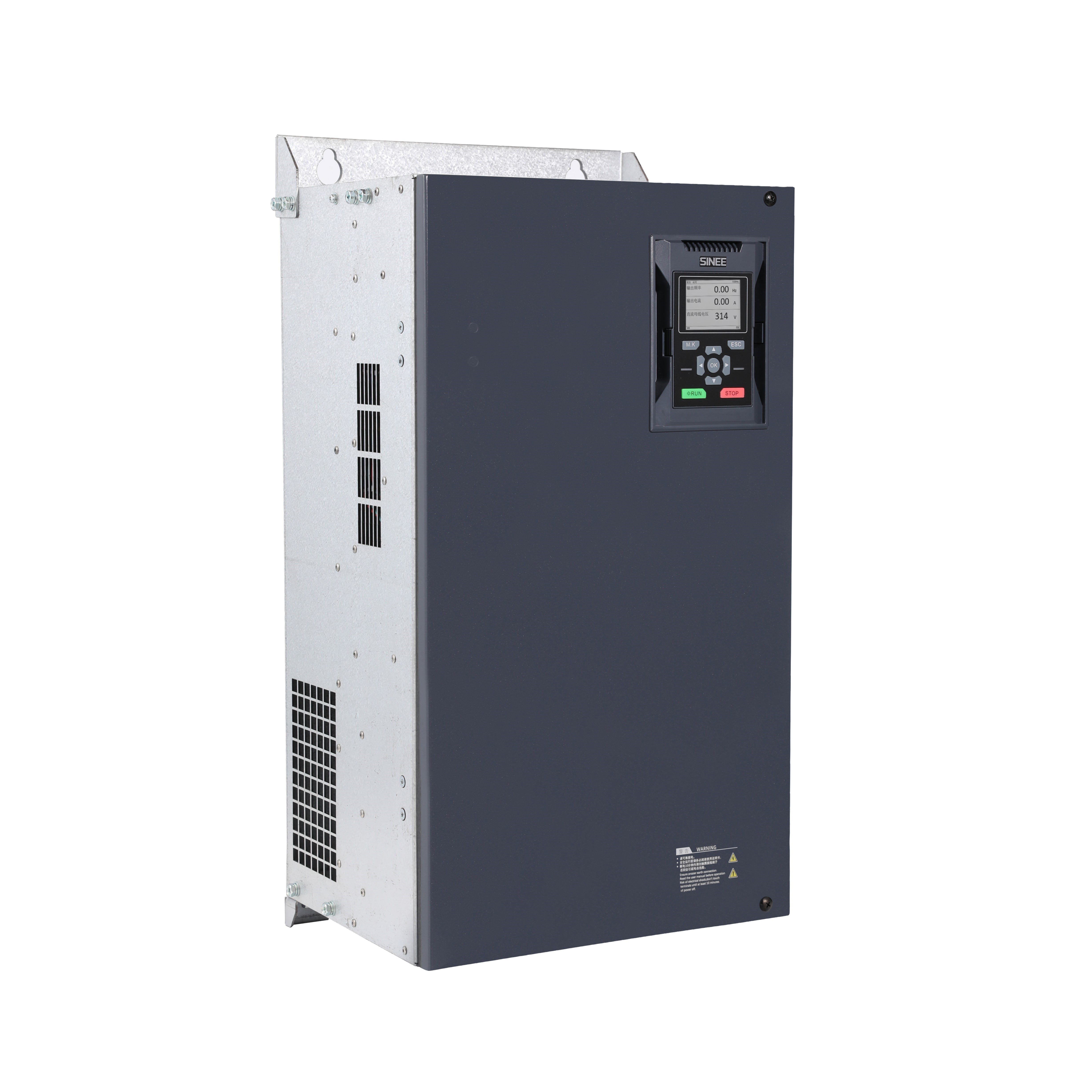

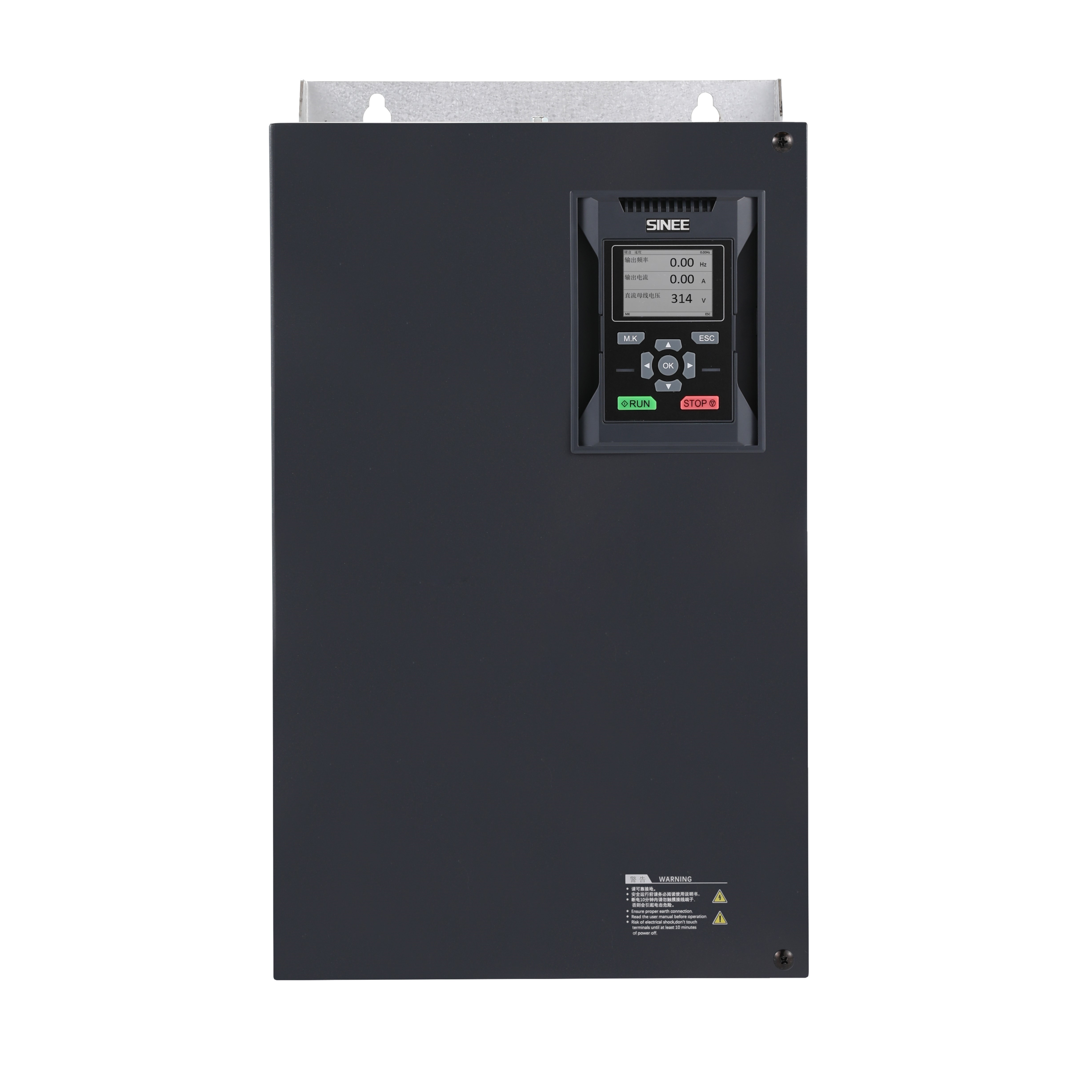

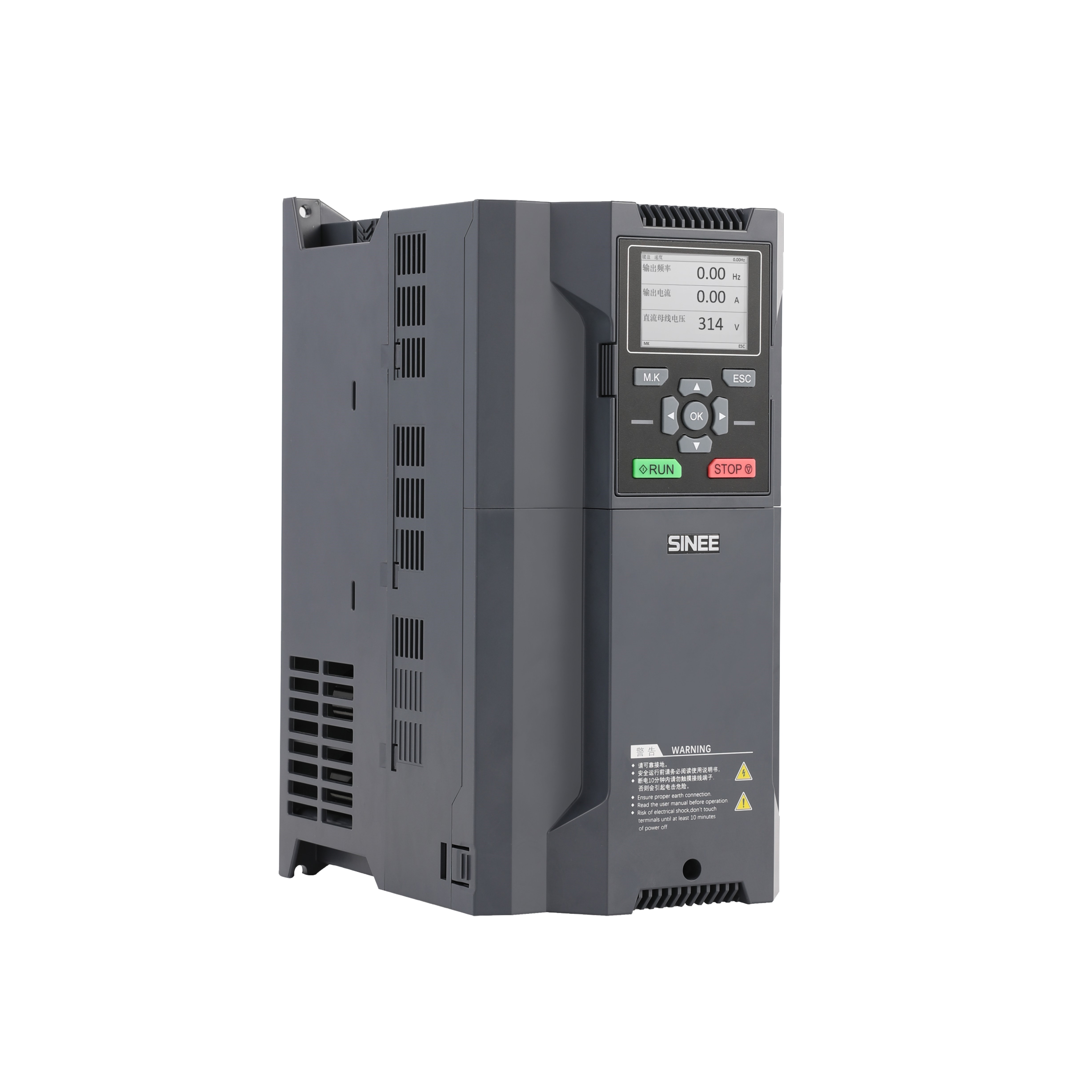

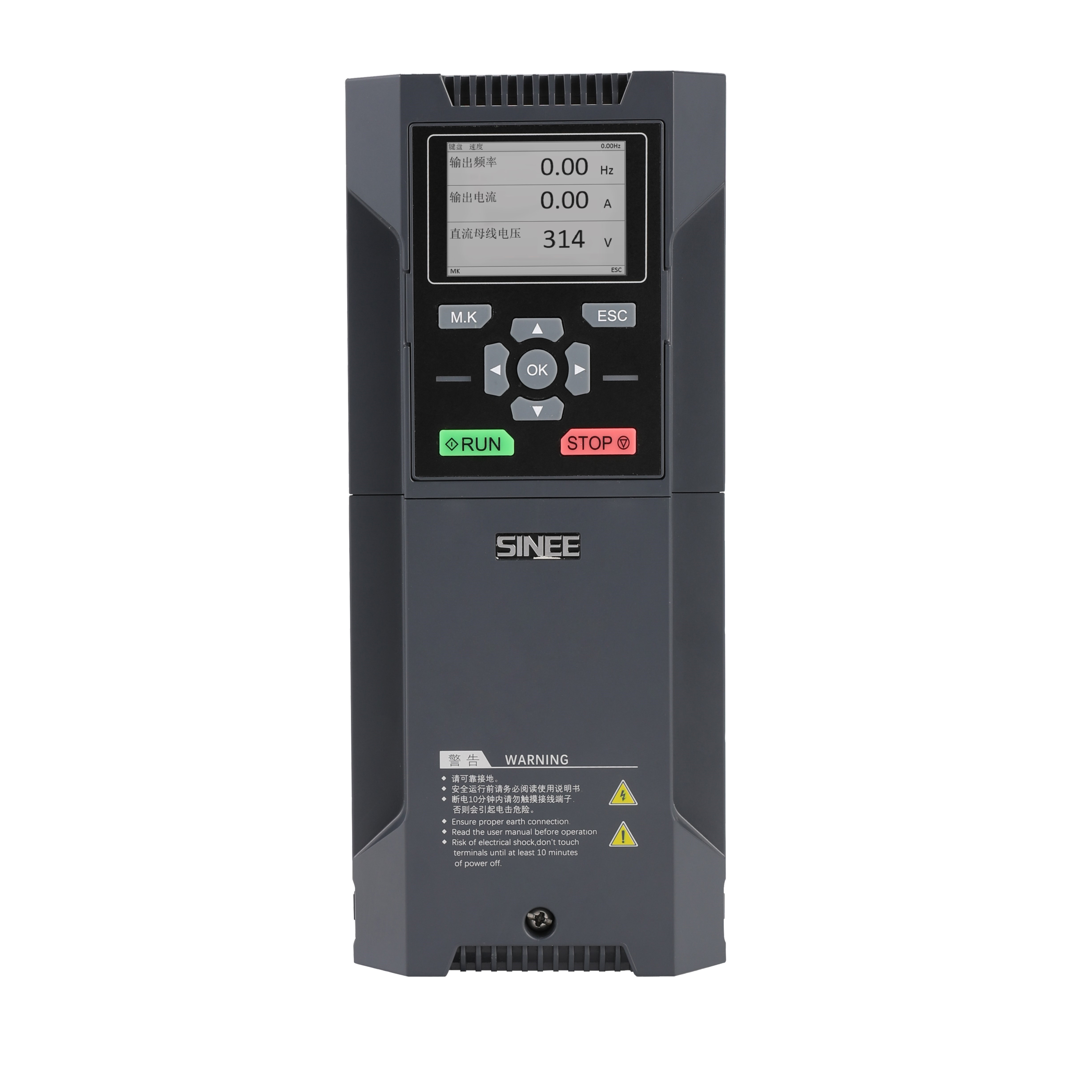

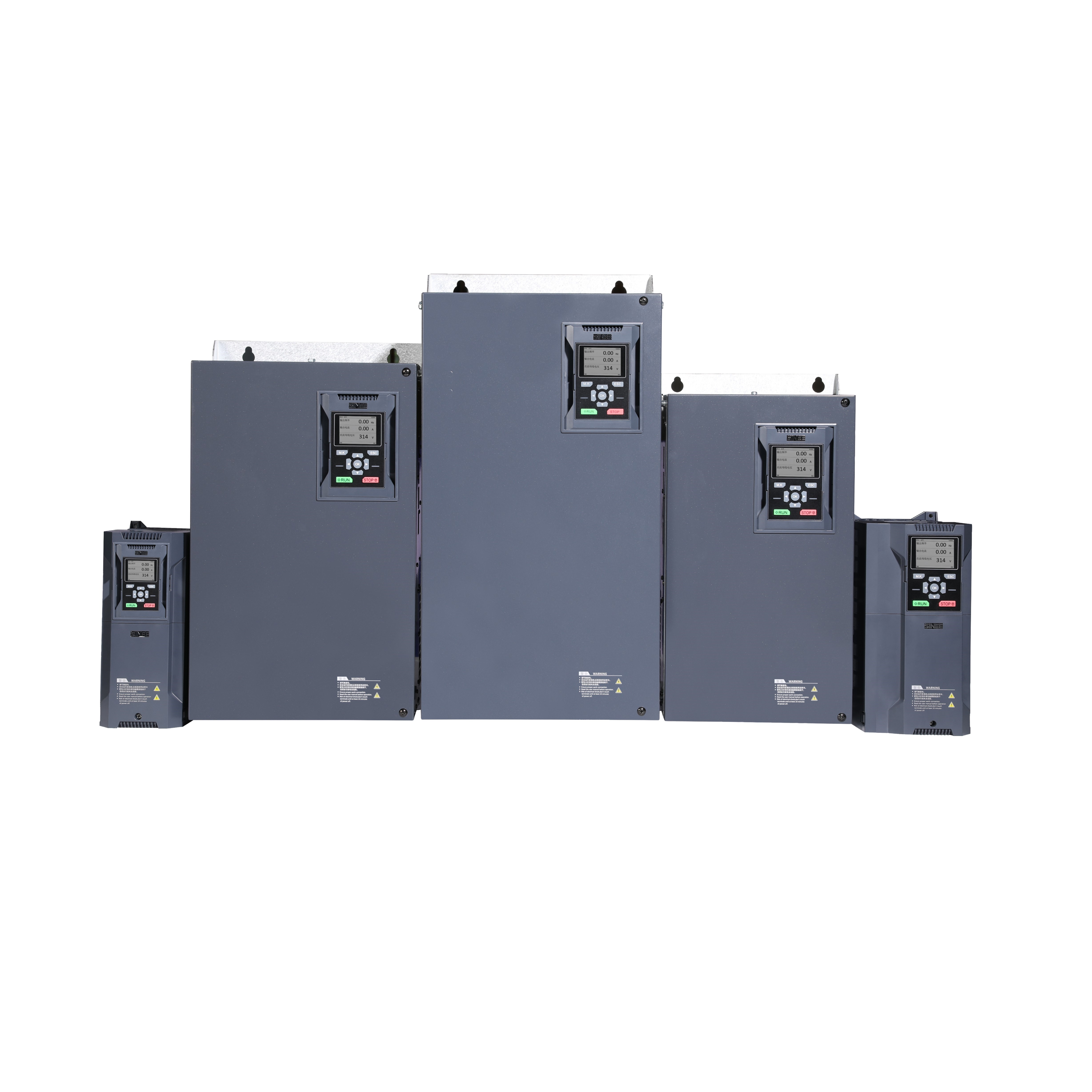

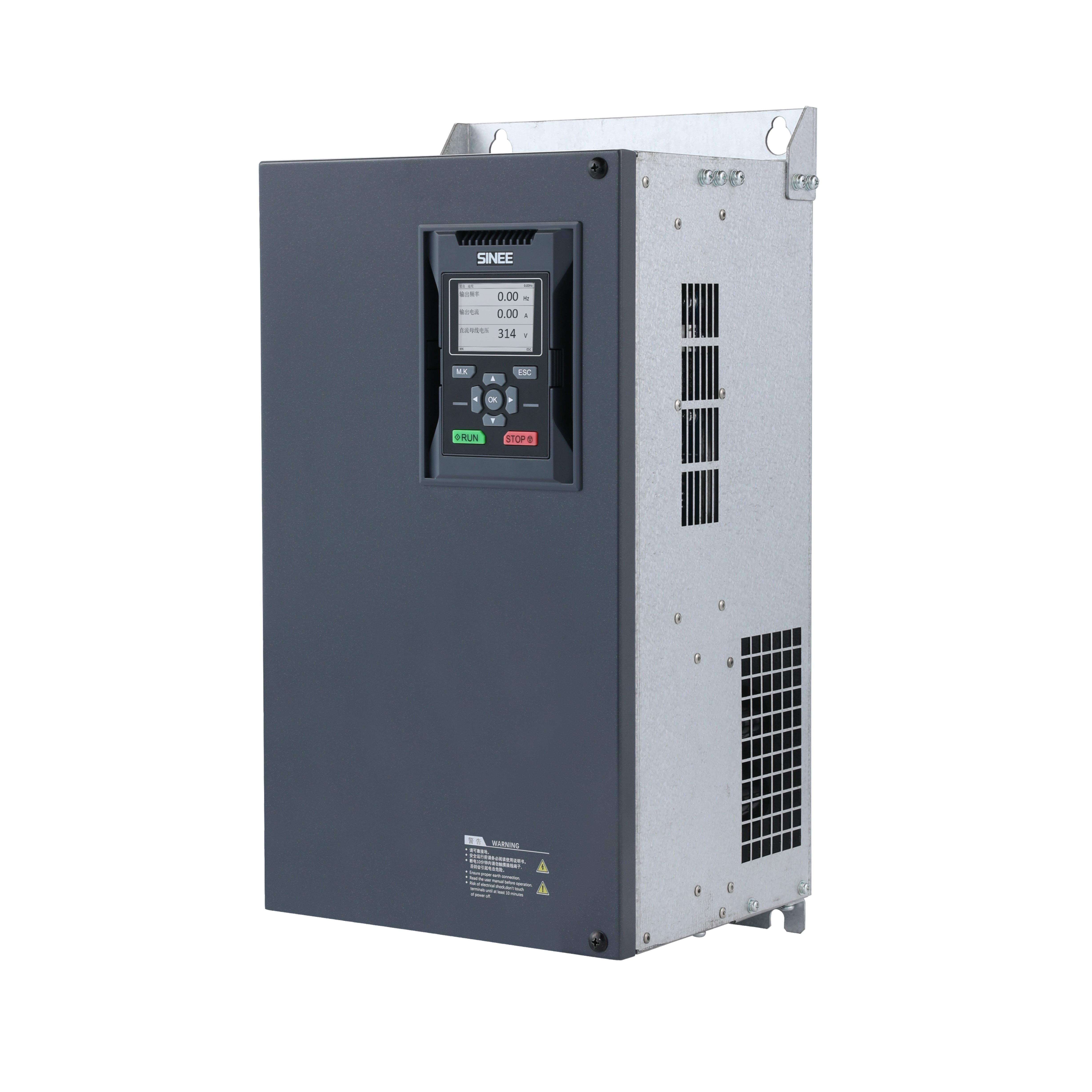

TC760 tower crane inverter is a high-performance inverter launched by SINEE specially for lifting applications. It can be used in closed-loop lifting applications of tower cranes,
open-loop lifting applications of construction cranes, as well as in slewing and luffing applications of tower cranes. Factory values of related parameters may change with the
F20.00 lifting industry application macro selected.
TC760 tower crane inverter has the following features:
• Equipment of a built-in DC reactor (in case of an inverter of above 11kW) can reduce input current distortion, increase the power factor and promote the product reliability.
• Closed-loop vector control; low-frequency large-torque stable operation: 0Hz/150% steady output of the rated torque to ensure stable operation of lifting equipment in the process
of starting, lifting and lowering.
• Zero-servo function: With an encoder connected, the inverter can drive the motor to hold the full load in the air or to lower the full load at a controlled low speed when the brake fails,
providing an additional protection for lifting equipment.
• Over-speed protection: With an encoder connected, the inverter can provide protection against parking or running at an excessive speed, so that any abnormality in speed and
braking power during lifting can be timely identified to prevent hook slips.
• Special control logic for brake: It controls the brake of lifting equipment to open and close in a reasonable time sequence, so that safe operation of the system can be guaranteed
and the service life of the braking system can be prolonged.
• Wide voltage input range with automatic voltage stabilization: it can still meet the torque output requirement upon voltage drop of the power grid;
• Wide speed control range: it can meet the requirements of lifting light load at high speeds and lifting heavy load at low speeds to improve the working efficiency of lifting equipment.
Rated voltage of power supply: Three-phase AC 380V~415V;
Applicable motor: Three-phase AC asynchronous motor with the power range of 4.0~400KW
| Item | Specification | |
| Power supply | Rated voltage of power supply | Three-phase 380V-20%~415V+20%, 50~60Hz±5%, voltage unbalance rate<3% |
| Output | Maximum output voltage | The maximum output voltage is the same as the input power voltage. |
| Rated output current | Continuous output of 100% rated current | |
| Overload capacity of heavy-duty type | 150% rated current: 60s; 180% rated current: 10s | |
| Overload capacity of super heavy-duty type | 150% rated current: 60s; 200% rated current: 3s | |
| Basic control functions | Driving mode | V/F control (VVF); |
| Speed sensorless vector control (SVC) | ||
| Speed sensor vector control (FVC) | ||
| Input mode | Frequency (speed) input, torque input | |
| Start and stop control mode | Keyboard, control terminal (two-line control and three-line control), communication | |
| Frequency control range | 0.00~600.00Hz | |
| Input frequency resolution | Digital input: 0.01Hz Analog input: 0.1% of maximum frequency | |
| Speed control range | 1:50 (VVF), 1:1000 (FVC) | |
| Speed control accuracy | Rated synchronous speed ± 0.2% | |
| Acceleration and deceleration time | 0.01s~600.00s/0.1s~6000.0s/1s~60000s | |
| Voltage/frequency characteristics | Rated output voltage 20%~100% adjustable, reference frequency 1Hz~600Hz adjustable | |
| Torque boost | Fixed torque boost curve, any V/F curve optional | |
| Starting torque | 150%/1Hz (VVF), 150%/0.25Hz (SVC), 150%/0Hz (FVC) | |
| Torque control accuracy | ±5% rated torque (FVC) | |
| Self-adjustment of output voltage | When the AVR function is enabled, the output voltage remains basically the same as the input voltage changes | |
| Automatic current limit | Output current is automatically limited to avoid frequent overcurrent trips. | |
| DC braking | Braking frequency: 0.01 to maximum frequency Braking time: 0~30S | |
| Braking current: 0%~100% rated current | ||
| Signal input source | Communication, multi-speed, analog, high-speed pulse, etc. | |
| Input and output function | Reference power supply | 10V/20mA |
| Terminal control power | 24V/200mA | |
| Digital input terminal | 7-channel digital multi-functional input terminal | |
| Analog input terminal | 3 (standard configuration AI1~AI3) + 1 (extension card AI4)-channel analog input: | |
| One (AI1) voltage source: 0 to 10V input; | ||
| Two (AI2/AI3) voltage sources: 0 to 10V or 0 to 20mA input; | ||
| Digital output terminal | 2 (standard Y1/Y2) + 1 (extension card Y3) open-collector multi-function outputs and 2 (R1: EA/EB/EC and R2:RA/RB/RC) relay multi-function outputs. | |
| Maximum output current of the collector: 50mA; relay contact capacity: 250VAC/3A or 30VDC/1A, with EA-EC and RA-RC normally open and EB-EC and RB-RC normally closed | ||
| Analog output terminal | 2-channel (M1/M2) multi-function analog output terminals to output 0~10V or 0~20mA | |
| Keyboard display | LCD display | The LCD digital tube displays relevant information about the inverter. |
| Parameter copying | Parameter settings of the inverter can be uploaded and downloaded for fast parameter copying. | |
| Protection | Protective Function | Short circuit, overcurrent, overvoltage, undervoltage, phase loss, overload, overheat, overspeed, load loss, external fault, etc. |
| Use conditions | Location | Indoor, at an altitude of less than 1 km, free of dust, corrosive gases and direct sunlight |
| Applicable environment | -10℃~+40℃, 20%~90%RH (non-condensing) | |
| Vibration | Less than 0.5g | |
| Storage environment | -25℃~+65℃ | |
| Installation method | Wall-mounted, floor-standing electrical control cabinet, through-wall | |
| Protection level | IP20/IP21 (450kW and above) | |
| Cooling method | Forced air cooling | |
| Maximum applicable motor power (kW) | Heavy-duty rating | |
| Model | Rated current (A) | |
| 4 | TC760-4R0-3B | 9.4 |
| 5.5 | TC760-5R5-3B | 13 |
| 7.5 | TC760-7R5-3B | 17 |
| 11 | TC760-011-3B | 25 |
| 15 | TC760-015-3B | 32 |
| 18.5 | TC760-018-3B | 38 |
| 22 | TC760-022-3/3B | 45 |
| 30 | TC760-030-3/3B | 60 |
| 37 | TC760-037-3/3B | 75 |
| 45 | TC760-045-3/3B | 90 |
| 55 | TC760-055-3/3B | 110 |
| 75 | TC760-075-3/3B | 150 |
| 90 | TC760-090-3 | 176 |
| 110 | TC760-110-3 | 210 |
| 132 | TC760-132-3 | 253 |
| 160 | TC760-160-3 | 304 |
| 185 | TC760-185-3 | 357 |
| 200 | TC760-200-3 | 380 |
| 220 | TC760-220-3 | 426 |
| 250 | TC760-250-3 | 465 |
| 280 | TC760-280-3 | 520 |
| 315 | TC760-315-3 | 585 |
| 355 | TC760-355-3 | 650 |
| 400 | TC760-400-3 | 725 |
| Specifications | W | W1 | H | H1 | H2 | D | D1 | D2 | d | Appearance |
| TC760-4R0-3B | 95 | 82 | 230 | 222 | 218 | 171 | 132 | 96 | 4.5 | (b) |
| TC760-5R5-3B | 110 | 95 | 275 | 267 | 260 | 187 | 146 | 105 | 5.5 | |
| TC760-7R5-3B | ||||||||||
| TC760-011-3B | 140 | 124 | 297 | 289 | 280 | 207 | 163 | 120 | 5.5 | |
| TC760-015-3B | ||||||||||
| TC760-018-3B | 190 | 171 | 350 | 340 | 330 | 220 | 173 | 128 | 7 | |
| TC760-022-3B | ||||||||||
| TC760-030-3B | 254 | 200 | 484 | 465 | 440 | 221 | 180.5 | 158 | 9.5 | (c) |
| TC760-037-3B | ||||||||||
| TC760-045-3B | 304 | 240 | 548 | 524 | 480 | 266 | 225 | 193 | 9.5 | |
| TC760-055-3B | ||||||||||
| TC760-075-3B | 324 | 230 | 635 | 613 | 570 | 264 | 223 | 190 | 11.5 | |
| TC760-090-3 | 339 | 270 | 621 | 600 | 578 | 296 | 243 | 243 | 11.5 | |
| TC760-110-3 | ||||||||||
| TC760-132-3 | 422 | 320 | 786 | 758 | 706 | 335 | 270 | 256 | 11.5 | |
| TC760-160-3 | ||||||||||
| TC760-200-3 | 441 | 320 | 1025 | 989 | 942 | 358 | / | 285 | 11.5 | |
| TC760-220-3 | ||||||||||
| TC760-250-3 | 560 | 450 | 1204 | 1171 | 1100 | 404 | / | 333 | 13 | |
| TC760-280-3 | ||||||||||
| TC760-315-3 | 660 | 443 | 1597 | 1567 | 1504 | 434 | 375.5 | 323.5 | 13 | |
| TC760-355-3 | ||||||||||
| TC760-400-3 |
