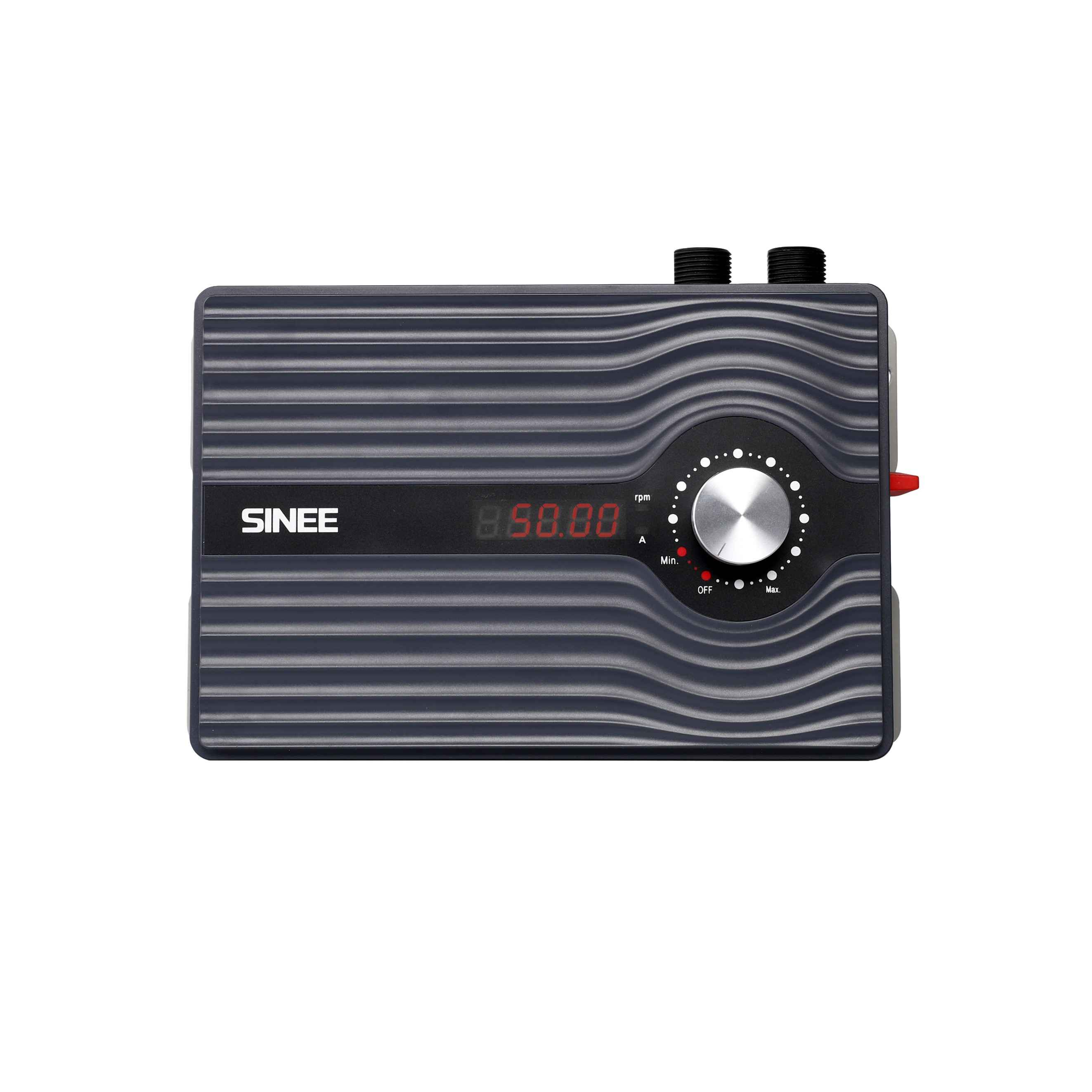

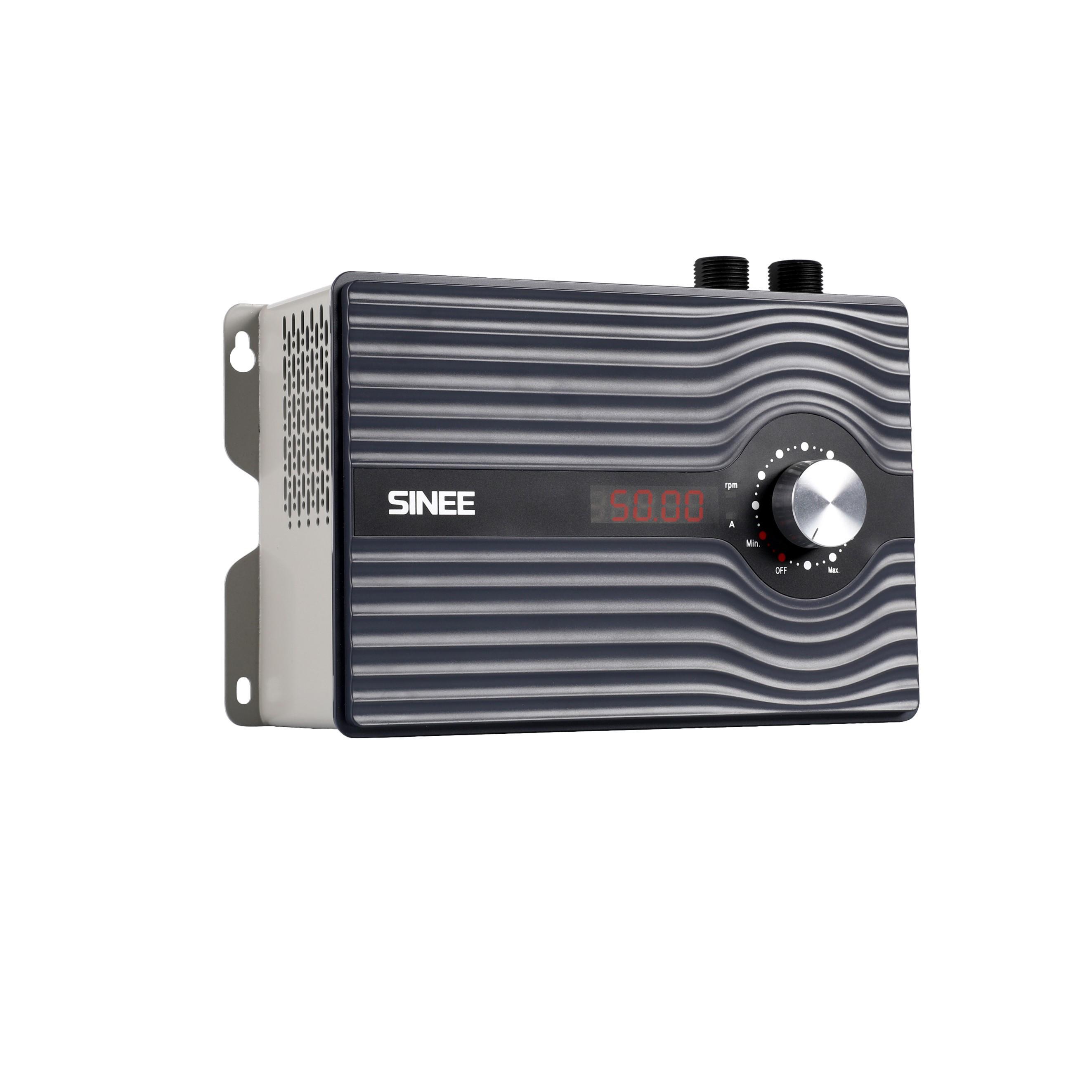

F730 Industrial fan
•High performance
•Small size
•High cost performance
•Stable and reliable
| Function code | Function code name | Parameter Description | Unit | Factory default | Attributes |
| F01.01 | Motor rated power | 0.10～650.00 | kW | 2.2 | 〇 |
| F01.02 | Motor rated voltage | 50～2000 | V | 380 | 〇 |
| F01.03 | Motor rated current | 0.01～600.00（Motor rated power≤75kW） 0.1～6000.0（Motor rated power >75kW） | A | 〇 | |
| F01.04 | Motor rated frequency | 0.01～600.00 | Hz | 〇 | |
| F01.05 | Motor rated speed | 1～60000 | rpm | 〇 | |
| F01.22 | Synchronous Motor Back EMF | 10.0～2000.0（Back electromotive force at rated speed） | V | 〇 |
| Rated supply voltage | Model | Applicable motor power（KW） | Rated output current（A） |
| Single phase AC 200V~240V | F730-0R7-1 | 0.75 | 3.5 |
| F730-1R5-1 | 1.5 | 8 | |
| Three-phase AC 340~460V | F730-1R5-3 | 1.5 | 4.2 |
| F730-2R2-3 | 2.2 | 5.6 |
| Terminal label | Function Description |
| R、S、T | AC power input terminal, connected to three-phase AC power |
| L、N | AC power input terminal, connected to single-phase AC power |
| U、V、W | The AC output terminal of the fan all-in-one machine, connected to the three-phase AC motor |
 | Ground terminal, connected to the earth |
