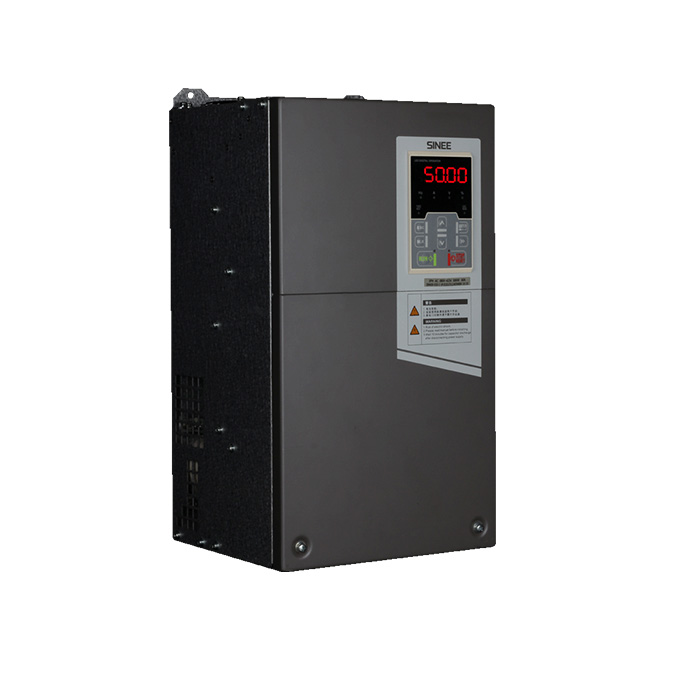

EM610 Special Inverter for Tension Control
> Starting from 11kW, a built-in DC reactor reduces input current distortion, improves power factor, and enhances product reliability;
> Support four optional tension control modes, closed-loop speed mode, open-loop torque, closed-loop torque and constant linear speed mode;
> Zero-speed, high-speed and small roll, large roll process to ensure constant tension of the material;
> Support 3 channels AI1, AI2, AI4 (extension card) -10V ~ +10V analog input, one channel 4 ~ 20mA current input (AI3).
> Support 9 calculation methods of coil diameter, and choose the calculation method of coil diameter reasonably according to the process requirements;
> Mechanical inertia, material inertia, static and dynamic high-speed friction compensation;
> Combined use of winding and unwinding systems, common DC bus, saving power;
> Support communication bus expansion to realize various industrial network interconnections: 485 bus, Profibus-DP network, CANopen network and DeviceNet network;
> Support multiple encoders: ABZ incremental, UVW incremental, UVW wire-saving and resolver.
| Item | Specification | |
| Power supply | Rated supply voltage | Three-phase 380V-20%～415V+20%，50～60Hz±5%，Voltage imbalance rate<3% |
| Output | Output voltage | The maximum output voltage is the same as the input supply voltage |
| Output current rating | 100% rated current continuous output | |
| Maximum overload current | 150% rated current 60s，180% rated current 10s，200% rated current 2s | |
| Basic Control Functions | Drive mode | VVF； |
| SVC； | ||
| FVC | ||
| Input | Frequency (speed) input, torque input | |
| Start-stop control method | Keyboard, control terminal (two-wire control, three-wire control), communication | |
| Frequency control range | 0.00～600.00Hz | |
| Input frequency resolution | Digital input: 0.01Hz Analog input: 0.1% of maximum frequency | |
| Speed range | 1:50（VVF）、1:200（SVC）、1:1000（FVC） | |
| Speed Control Accuracy | ±0.2% Rated synchronous speed | |
| Acceleration and deceleration time | 0.01s～600.00s/0.1s～6000.0s/1s～60000s | |
| Torque boost | Fixed torque boost curve, optional V/F curve | |
| Starting torque | 150%/1Hz（VVF）、150%/0.25Hz（SVC）、150%/0Hz（FVC） | |
| Torque Control Accuracy | ±8% Rated torque (SVC)、±5% Rated torque（FVC） | |
| Output voltage self-adjusting | The input voltage changes, the output voltage remains basically unchanged | |
| Automatic current limit | Automatically limit the output current to avoid frequent over-current tripping | |
| DC braking | Braking frequency：0.01～maximum frequency braking time：0～30S | |
| Braking current：0%～100% rated | ||
| Signal input source | Communication, multi-speed, analog, high-speed pulse, etc. | |
| Input&Output Function | Reference power | 10V/20mA |
| Terminal Control Power | 24V/200mA | |
| Digital input terminal | 7 (standard configuration X1～X7)+4 (expansion card X8～X11) digital multi-function input; | |
| X7 can be used as a high-speed pulse input terminal（F02.06=35/38/40）； | ||
| X1～X6 and X8～X11 total 10 channels can only be used as ordinary digital input terminals | ||
| Analog input terminal | 3 (standard configuration AI1~AI3)+1 (expansion card AI4) analog input; | |
| 2-way (AI1/AI2) voltage source 0~10V input or voltage source -10V~10V input optional; | ||
| 2-way (AI2/AI3) voltage source 0~10V input or current source 0~20mA input optional; | ||
| 1 way (AI4) voltage source -10V～10V input | ||
| Digital output terminal | 2 (standard Y1/Y2)+1 (expansion card Y3) open collector multi-function outputs and 2 (R1: EA/EB/EC and R2: RA/RB/RC) relay multi-function outputs. | |
| Collector output maximum output current 50mA; relay contact capacity 250VAC/3A or 30VDC/1A, EA-EC and RA-RC normally open, EB-EC and RB-RC normally closed | ||
| Analog output terminal | 2-way (M1/M2) multi-function analog output terminals, which can output 0~10V or 0~20mA | |
| Keyboard display | LED Display | LED digital tube displays relevant information of the inverter |
| Parameter copy | The parameter setting information of the inverter can be uploaded and downloaded to realize fast parameter copying | |
| Protection | Protection | Short circuit, overcurrent, overvoltage, undervoltage, phase loss, overload, overheating, overspeed, load drop and external faults, etc. |
| Conditions of Use | Installation site | Indoor, below 1 km above sea level, free from dust, corrosive gas and direct sunlight |
| Applicable environment | -10℃～+40℃,20%～90%RH(no condensation) | |
| Vibration | <0.5g | |
| Storage environment | -25℃～+65℃ | |
| Installation method | Wall-mounted, floor electric control cabinet, through-wall | |
| Protection Level | IP20/IP21（Up to 450kW） | |
| Cooling method | Forced air cooling | |
| Rated supply voltage | Model | Applicable motor power（kW） | Rated output current（A） |
| Three-phase AC 380～415V | EM610-0R7-3B | 0.75 | 2.5 |
| EM610-1R5-3B | 1.5 | 4.2 | |
| EM610-2R2-3B | 2.2 | 5.6 | |
| EM610-4R0-3B | 4 | 9.4 | |
| EM610-5R5-3B | 5.5 | 13 | |
| EM610-7R5-3B | 7.5 | 17 | |
| EM610-011-3B | 11 | 25 | |
| EM610-015-3B | 15 | 32 | |
| EM610-018-3B | 18.5 | 38 | |
| EM610-022-3/3B | 22 | 45 | |
| EM610-030-3/3B | 30 | 60 | |
| EM610-037-3/3B | 37 | 75 | |
| EM610-045-3/3B | 45 | 90 | |
| EM610-055-3/3B | 55 | 110 | |
| EM610-075-3/3B | 75 | 150 | |
| EM610-090-3 | 90 | 176 | |
| EM610-110-3 | 110 | 210 | |
| EM610-132-3 | 132 | 253 | |
| EM610-160-3 | 160 | 304 | |
| EM610-185-3 | 185 | 357 | |
| EM610-200-3 | 200 | 380 | |
| EM610-220-3 | 220 | 426 | |
| EM610-250-3 | 250 | 465 | |
| EM610-280-3 | 280 | 520 | |
| EM610-315-3 | 315 | 585 | |
| EM610-355-3 | 355 | 650 | |
| EM610-400-3 | 400 | 725 | |
| EM610-450-3 | 450 | 820 | |
| EM610-500-3 | 500 | 900 | |
| EM610-560-3 | 560 | 1010 |
| Model | W | W1/W2 | H | H1 | H2 | D | D1 | D2 | d | Shape |
| EM610-0R7-3B | 130 | 115/120 | 228 | 220 | 219 | 153 | 108 | 75 | 5 | (b) |
| EM610-1R5-3B | ||||||||||
| EM610-2R2-3B | ||||||||||
| EM610-4R0-3B | ||||||||||
| EM610-5R5-3B | 140 | 120/ 130 | 270 | 261 | 258 | 172 | 128 | 94 | 5 | (b) |
| EM610-7R5-3B | ||||||||||
| EM610-011-3B | 180 | 150 | 368 | 353 | 343 | 210 | 165 | 136 | 7 | (b) |
| EM610-015-3B | ||||||||||
| EM610-018-3B | ||||||||||
| EM610-022-3/3B | 250 | 200 | 484 | 470 | 440 | 222 | 150 | -- | 9 | (c) |
| EM610-030-3/3B | ||||||||||
| EM610-037-3/3B | ||||||||||
| EM610-045-3/3B | 315 | 200 | 560 | 546 | 513 | 250 | 180 | -- | 9 | (c) |
| EM610-055-3/3B | 350 | 250 | 662 | 638 | 603 | 262 | 188 | -- | 12 | (c) |
| EM610-075-3/3B | ||||||||||
| EM610-090-3 | 386 | 300 | 753 | 724 | 700 | 292 | 231 | 300 | 13 | (d) |
| EM610-110-3 | 416 | 300 | 855 | 825 | 793 | 307 | 246 | 315 | 13 | (d) |
| EM610-132-3 | ||||||||||
| EM610-160-3 | 497 | 397 | 1107 | 1076 | 1036 | 340 | 285 | 348 | 13 | (d) |
| EM610-185-3 | ||||||||||
| EM610-200-3 | ||||||||||
| EM610-220-3 | 656 | 450 | 1348 | 1314 | 1261 | 388 | 232 | 395 | 13 | (d) |
| EM610-250-3 | ||||||||||
| EM610-280-3 | ||||||||||
| EM610-315-3 | 801 | 680 | 1417 | 1383 | 1330 | 388 | 190 | 395 | 13 | (d) |
| EM610-355-3 | ||||||||||
| EM610-400-3 | ||||||||||
| EM610-450-3 | 1000 | 920 | 1800 | 1645 | -- | 600 | 520 | 450 | 17 | (e) |
| EM610-500-3 | ||||||||||
| EM610-560-3 |
